WLAN-61

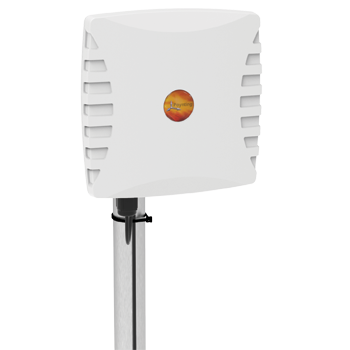

The WLAN-61 is a dual-band Wi-Fi MIMO antenna, developed by Poynting Antennas, that provides dual-band Wi-Fi coverage in the 2.4 GHz and 5 to 6 GHz bands, making it ideal for any Wi-Fi access point, whether it is using older Wi-Fi technology or new Wi-Fi technology that goes up to Wi-Fi 6 (802.11ax). Multiple dual-band antennas can resolve channel saturation and provide the ultimate in Wi-Fi performance and flexibility. This 4×4 MIMO antenna has 4 different antenna orientations in one enclosure. This means the antenna can be used in a 2×2, 3×3 and if necessary, a 4×4 antenna configuration.
The wide beamwidth ensures good coverage in offices, halls and factories etc. The antenna operates in the two Wi-Fi frequency bands 2.4 GHz and 5 GHz, offering excellent utilization of the radio spectrum. The antenna has 9 dBi gain in the 2.4 GHz band and 11 dBi gain in the 5 GHz band, which offers the best performance with a reliable connection. The housing is made of ABS which is a high impact resistant plastic and is also resistant to acids and other chemicals that may occur in industrial plants.

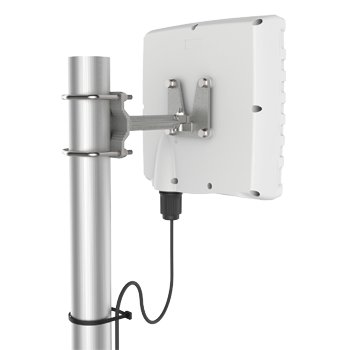

The antenna can be opened on the side where the 4 x SMA female connectors are placed. The cable can be fed through the bypass gland, which eliminates the joint to the antenna extension cables. This eliminates connector losses and the need for taping and waterproofing the connectors for an outdoor installation. This antenna is designed for installations where 4×4 (four independent streams), multiplexing time-space technologies is needed. It can be used indoors or outdoors and is ideal for use in warehouses, production facilities, building sites or any other environment that requires Wi-Fi connectivity, such as computers, mobile phones, tablets, and any other IoT devices
