The Teltonika TSW010 industrial Ethernet switch provides a simple and cost‑effective way to expand wired network connectivity in industrial environments. It delivers reliable performance without configuration, making it ideal for automation panels, control cabinets, and infrastructure deployments where stability matters more than advanced switching features.
The TSW010 includes five 10/100 Mbps Ethernet ports that support auto‑negotiation and auto MDI/MDIX. As a result, devices connect instantly with no setup required. Because the switch uses a store‑and‑forward architecture and non‑blocking bandwidth, it maintains consistent data flow for industrial equipment, controllers, and edge devices.
In addition, the TSW010 features a plug‑and‑play unmanaged design. You install it, power it, and connect devices—no configuration software or switching expertise required. This makes it an excellent choice for quick network expansion in manufacturing, utilities, and OT environments.
The switch uses a rugged anodized aluminum housing and supports DIN rail or surface mounting. Because it operates across a wide temperature range, it performs reliably in harsh industrial conditions. Furthermore, the 9–30 VDC industrial power input allows flexible integration with existing power systems.
For low‑power installations, the TSW010 supports passive PoE input via the first Ethernet port (Mode B). This option simplifies wiring when a dedicated power connection is unavailable, although it is not compatible with IEEE 802.3af/at standards.
Overall, the Teltonika TSW010 is ideal for industrial users who need a reliable, affordable Ethernet switch without management overhead.
Key Features
- Five 10/100 Mbps Ethernet ports
- Unmanaged, plug‑and‑play operation
- Auto MDI/MDIX and auto‑negotiation
- Non‑blocking bandwidth up to 1 Gbps
- Passive PoE input support (ETH1, Mode B)
- Wide power input range: 9–30 VDC
- Rugged anodized aluminum housing

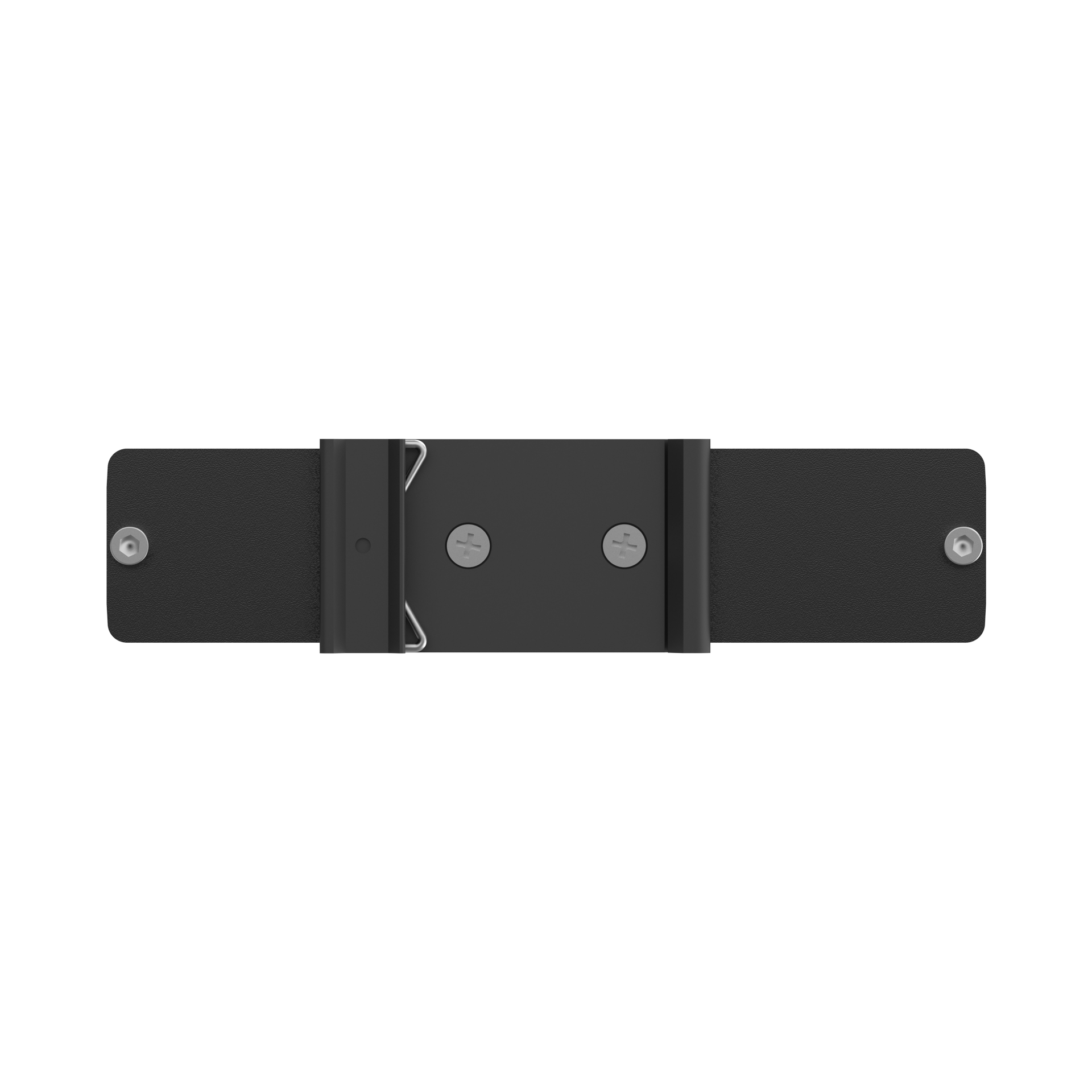

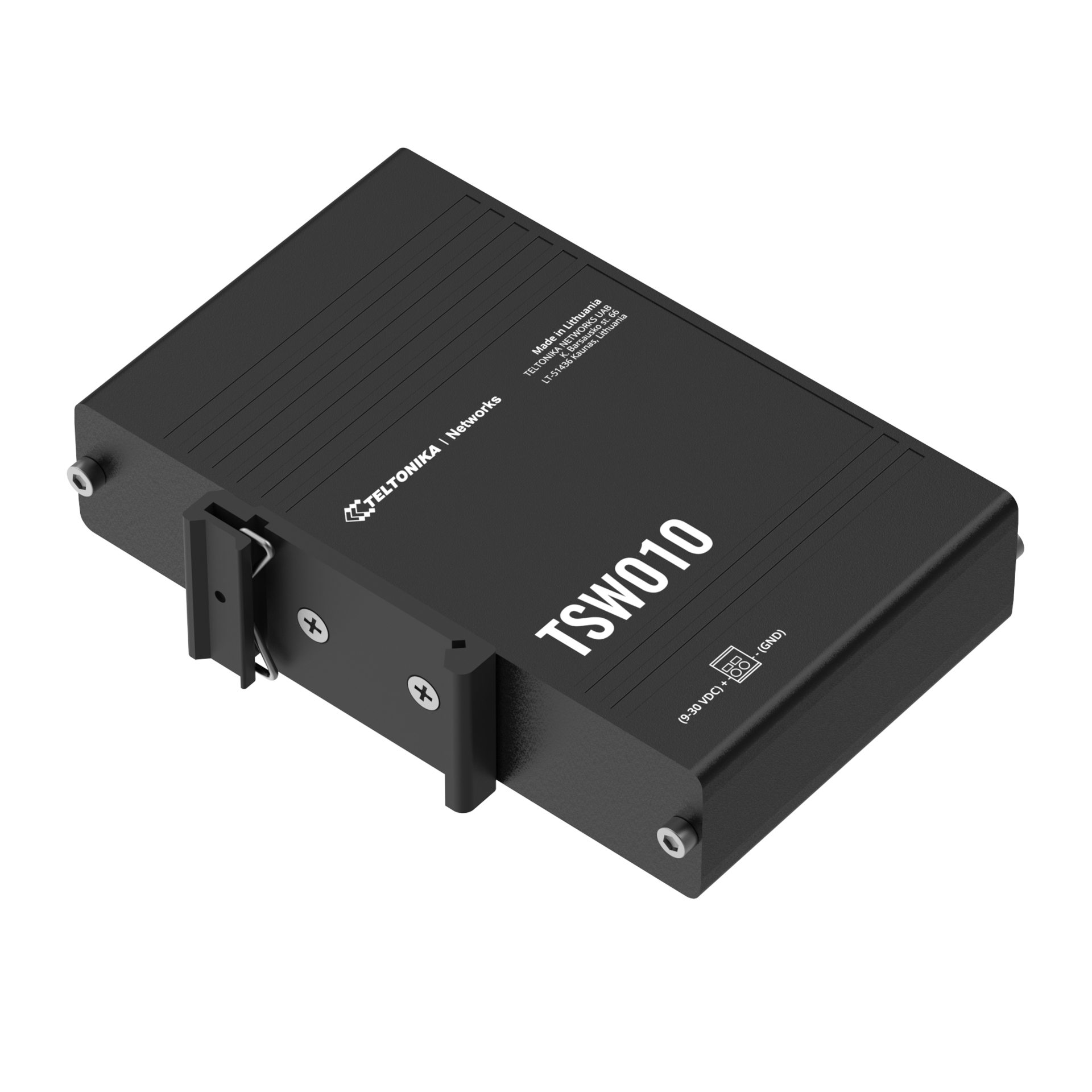

- Integrated DIN rail mounting
- Operating temperature: ‑40 °C to 75 °C
