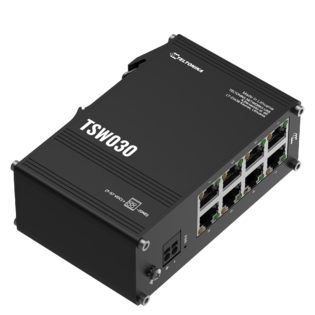

Teltonika TSW030

The Teltonika TSW030 industrial Ethernet switch is a compact, cost‑efficient solution for connecting multiple wired devices in industrial environments. It features eight 10/100 Mbps Ethernet ports, ensuring stable and reliable data communication for automation systems, control cabinets, and edge networks.

Simple Plug‑and‑Play Switching

The TSW030 uses an unmanaged plug‑and‑play design, so no configuration is required. Simply connect power and Ethernet cables, and the switch is ready to operate. This makes it ideal for deployments where speed, simplicity, and reliability are critical.

Low Power Consumption for Industrial Use

The Teltonika TSW030 is designed for energy efficiency. It consumes as little as 0.5 W when idle and up to 1.5 W at maximum load, making it suitable for installations with limited power availability.

Built for Harsh Environments

Housed in a rugged anodized aluminum enclosure, the TSW030 is built for demanding industrial conditions. It supports DIN rail mounting and operates reliably in temperatures ranging from –40 °C to +75 °C. Its IP30-rated housing protects the device in industrial cabinets and enclosures.

Power and Mounting Flexibility

The switch features a 2‑pin industrial DC power input with a wide 7–57 VDC voltage range. This allows seamless integration into various industrial power systems. A grounding screw helps improve installation safety and reliability.

Typical Use Cases

• Industrial automation networks
• Control cabinets and PLC systems
• Machine‑to‑machine communication
• Utilities and energy infrastructure
• Building automation systems

Key Features

• 8× Fast Ethernet RJ45 ports (10/100 Mbps)
• Unmanaged, plug‑and‑play operation
• Ultra‑low power consumption

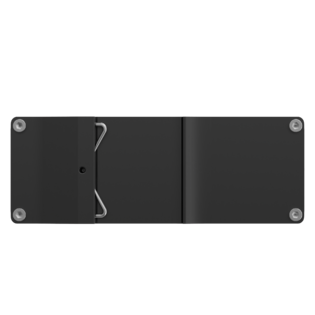

• Integrated DIN rail mounting
• Wide power input range: 7–57 VDC
• Rugged aluminum housing (IP30)
